Gogetair G-750 |
US$ 421.699
CHF 340.000 |
概观
| 概况 | | 类型: | 单螺旋桨飞机 | | 品牌: | Gogetair | | 型号 1: | G-750 | | 制造年: | 2024 | | 注册号: | S5-MMW | | 地点: | 瑞士, LSZO | | 时间总计: | 135 h | | 价格: | CHF 340.000
(~ US$ 421.699) | | 欧盟增值税: | 不是 | | 细节 |
| 销售者 |
777 Aircraft Sales
Appel Systems Online
Steubstra遝 6
86551 Aichach
德国
电话: 004915678878339 |
| 联系销售者 |
|
|
|
细节
| 概况 | | 类型: | 单螺旋桨飞机 | | 品牌: | Gogetair | | 型号 1: | G-750 | | 制造年: | 2024 | | 注册号: | S5-MMW | | 地点: | 瑞士, LSZO | | 时间总计: | 135 h | | 价格: | CHF 340.000
(~ US$ 421.699) | | 欧盟增值税: | 不是 |
| 发动机（多个） | | 发动机数量: | 1 | | 品牌/型号: | Bombardier-Rotax GmbH | | 功率: | 133 PS | | 螺旋桨 品牌/型号: | MTV-34-1-A/175-200 |
| 发动机描述/细节 | TTAF: 134.8
Engine
Type: ROTAX 915 iS 3
Number of Engines: 1
Manufacturer: Bombardier-Rotax GmbH
Takeoff Power: 140 HP (104 kW) � max 5 min
Max Continuous Power: 133 HP (99 kW) @ 5,500 RPM
Propeller
Manufacturer: MT-Propeller Entwicklung GmbH
Model: MTV-34-1-A/175-200
Number of Blades: 3
Pitch: Hydraulic, in-flight adjustable |

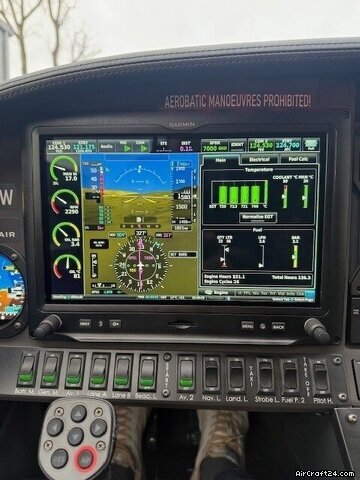

| 航空电子学 | Primary Flight Display (PFD1 Main): Garmin G3X � 010-01057-00, S/N: 350012588
GDU 460/465 Install Kit: Garmin G3X � 010-12150-00
PFD1 Backup Battery: IBBS 12V-3Ah � 202210825
PFD2 Backup: Garmin G3X � 010-01057-00, S/N: 350012592
Central GPS/COM/NAV: Garmin GTN 750Xi � 010-02002-01, S/N: 5FR007271
Autopilot: Garmin GMC 507 � 010-01946-00, S/N: 5H1100565
AP Servo Pitch / Roll: Garmin GSA 28 � 010-01068-20
Radio / COM: Garmin GTR 225A � 010-02486-50, S/N: 44V002979
Audio Panel: Garmin GMA 245R � 010-01471-01
Transponder: Garmin GTX 45R � 010-01757-01, S/N: 4YC040903
Traffic System (ADS-B / FLARM): LXNAV Power Mouse � S/N: 1553
ELT: Artex ELT 345 � A3-06-2880, S/N: 398419-032
Pitot Tube: Garmin GAP 26, 12V Heated � 010-01074-20, S/N: 34F700680
Airborne Weather Devices: Golze Engineering ADL190 & ADLRS232
Engine Indication System: Garmin GEA 24 � 010-01042-00, S/N: 2J2022487
GPS Antennas: GA35 & GA56 Low Profile � S/N: 211905 / 59442914
VHF / COM & NAV Antennas: Rami CI-121, AV-10, AV-525, AV-22, AV-200
Headset Install Connector Kit: Bose LEMO � 323172-0010
Marker Beacon / Antenna Coupler: Rami AV-64 / AV-547 |
| 装备 | Fuel & Oil
Fuel Tanks: 2 (wing leading edge)
Total Capacity: 144 L (38 US gal)
Usable Fuel: 136 L (36 US gal)
Oil Tank Capacity: 3.5 L (0.92 US gal)
Dimensions
Wingspan: 9.65 m (31 ft 8 in)
Wing Area: 11.9 m� (128 ft�)
Aspect Ratio: 7.8
Length: 6.98 m (22 ft 11 in)
Height: 2.21 m (7 ft 3 in)
Mean Aerodynamic Chord (MAC): 1.21 m
Weights & Loading
Max Takeoff Weight: 750 kg (1,653 lbs)
Max Front Seat Load (each): 100 kg (220 lbs)
Baggage � Cargo Area 1: 50 kg (110 lbs)
Baggage � Cargo Area 2: 25 kg (55 lbs)
Wing Loading: 63.03 kg/m�
Power Loading: 6.52 kg/HP
Cabin & Baggage: Dual side doors with central lock. Cargo area 2 accessible via fuselage door behind pilot (left side). Max baggage 25 kg. |
| 其他 | Options / Extras
Lighted instrument panel � 11-05224
2x Ceiling lights (EyeBeam RGBW) � AVE-EBBPS-00T / AVE-EBBA31-1605-00984 / A15-12
Beacon light on rudder (AirBurst NG DayLite) � AVE-ABSYR-D01, S/N: 49201-2205-00002
Front & rear facing camera � Bawaqaf RVC
Windshield heating � Gogetair GGA-VH1
Built-in O2D2 2-place oxygen system � MH Oxygen
AH501 Master Caution / Master Warning � Pushaero, S/N: 23PRI00806
Battery connector for charging 12V � TBD
Oil thermostat 915 � RS-Flight Systems, SKU 10-366, S/N: 1.23.07.023
USB Charger GSB 15 � Garmin, S/N: 63M254364 |
