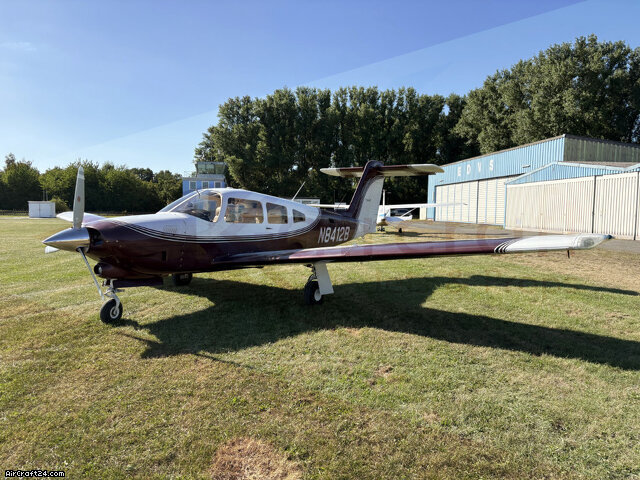

Piper PA-28RT-201T Turbo Arrow IV |
US$ 97.885
€ 84.000 |
概观
| 概况 | | 类型: | 单螺旋桨飞机 | | 品牌: | Piper | | 型号 1: | PA-28RT-201T Turbo Arrow IV | | 制造年: | 1981 | | 注册号: | N8412B | | 系列号: | 28R-8131164 | | 属性: | 始终（一直）停留在机库 | | 最后一年的: | 11/2024 | | 地点: | 德国 | | 时间总计: | 5642 h | | 价格: | € 84.000
(~ US$ 97.885) | | 净价: | US$ 97.885
€ 84.000 | | 欧盟增值税: | 不是 | | 增值税规定: | 不对 | | 细节 |
| 销售者 |
K-aircraft Jets & Props, Inh. Klaus Kuehl
Imhofstr. 2b
86830 Schwabmuenchen
德国
电话: +49 (0)82329964961 |
| 联系销售者 |
|
|
|
细节
| 概况 | | 类型: | 单螺旋桨飞机 | | 品牌: | Piper | | 型号 1: | PA-28RT-201T Turbo Arrow IV | | 制造年: | 1981 | | 注册号: | N8412B | | 系列号: | 28R-8131164 | | 属性: | 始终（一直）停留在机库 | | 最后一年的: | 11/2024 | | 地点: | 德国 | | 时间总计: | 5642 h | | 价格: | € 84.000
(~ US$ 97.885) | | 净价: | US$ 97.885
€ 84.000 | | 欧盟增值税: | 不是 | | 增值税规定: | 不对 |
| 发动机（多个） | | 发动机数量: | 1 | | 品牌/型号: | Continental TSIO-360-FB9B | | 功率: | 200 PS | | Time Between Overhaul ???
大修间隔时间 (hours): | 2000 h | | Time Between Overhaul ???
大修间隔时间 (years): | 12 yrs | | SNEW: | 2087 h | | 螺旋桨 品牌/型号: | Hartzell PHC-C3YF-1RF, 3-blade | | 螺旋桨时间 1: | 385 h SPOH |
| 发动机描述/细节 | Engine:
Continental TSIO-360-FB9B, rated at 200 hp
TBO 2000 hr or 12 years recommended
2087 since new
300 since top overhaul
Leak Test: 70/64/72/64/72/68 of 80psi
Propeller:
Hartzell PHC-C3YF-1RF, 3-blade
TBO 2.400 hr or 6 years recommended
385 SPOH compl. in 2012 |
| 航空电子学 | Audio/Marker: Garmin GMA-340
COM/NAV/GPS: Garmin GNS-430W
COM/NAV: Garmin GNC-255A
Transponder: Garmin GTX-330
HSI: Sandel 3308 HSI
ELT: Kannad 406 SF-compact
Autopilot: S-Tec System 50 |
| 装备 | Turbo Plus Kit invl. Intercooler
Oxygen system
GAMIjectors
Wing Root Speed Fairings
RMD Wing Tip Landing Leights
Graphic Engine Monitor
USB charging ports
Electric pitch-trim
Strobe lights
Pitot Heat
Vertically Adjustable Pilot Seat |
| 外部 | | The aircraft is finished in Matterhorn White with Deep Metallic Red and Jet Black accents. The paintwork shows signs of age and is rated as average in appearance. |

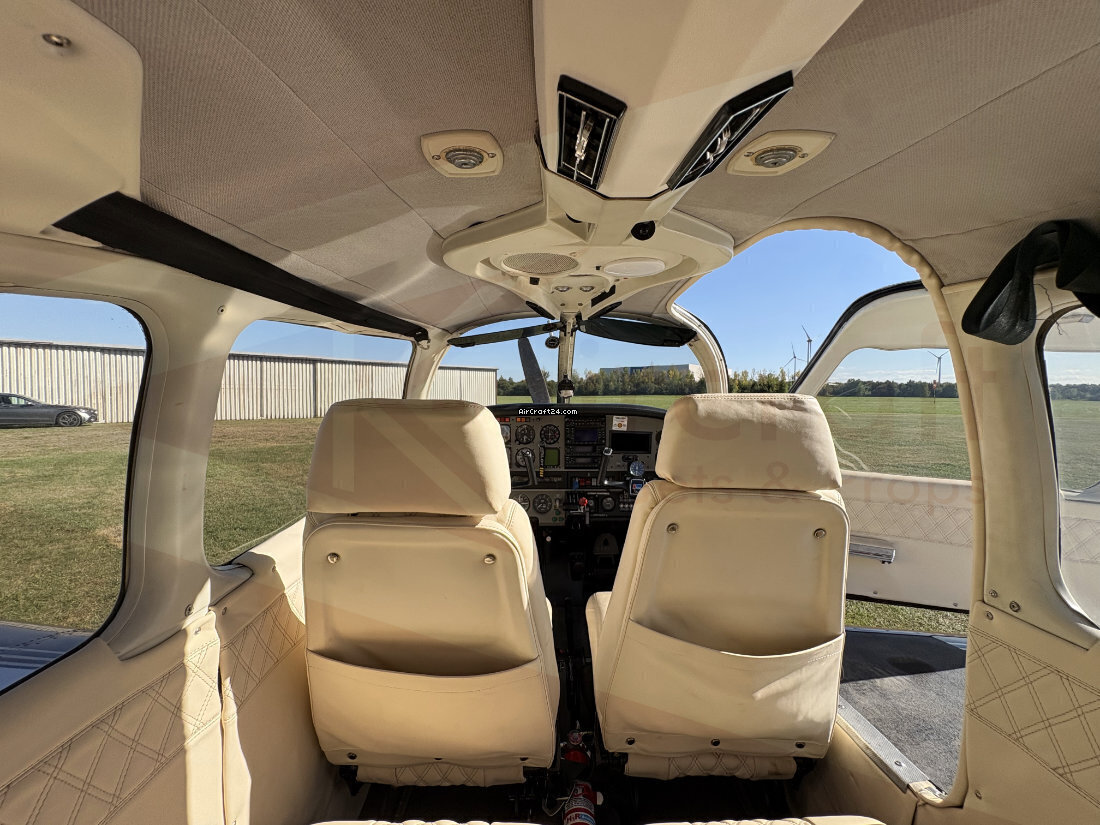

| 内部 | | The cabin features cream-colored leather seating in very good overall condition. Side panels and carpets were refurbished in 2021, giving the interior a well-maintained and comfortable appearance. |
| Inspection Status | Annual: November
Maintenance: Last annual / 100 hr inspection completed in 11.2024 |
| 其他 | History: This Piper Turbo Arrow IV was manufactured in 1981 and has been operated privately ever since. The aircraft has been regularly maintained, with complete logbooks available from new. In the past, the airframe received a professional repair and repaint following a hail event, and individual wing skin components were replaced many years ago. More recently, the interior was refurbished in leather and the avionics were modernized, including the installation of a Garmin GNS 430W and Sandel HSI. The aircraft has remained in private hands and has been consistently cared for throughout its lifetime.
Damage History: The aircraft was repaired and repainted after hail damage Incident in 2002. The right wing outboard leading edge skin and rib were replaced in 1989.
Aircraft Subject to Prior Sale or Removal from Market without Notice. Specification Subject to Verification by Purchaser. |
